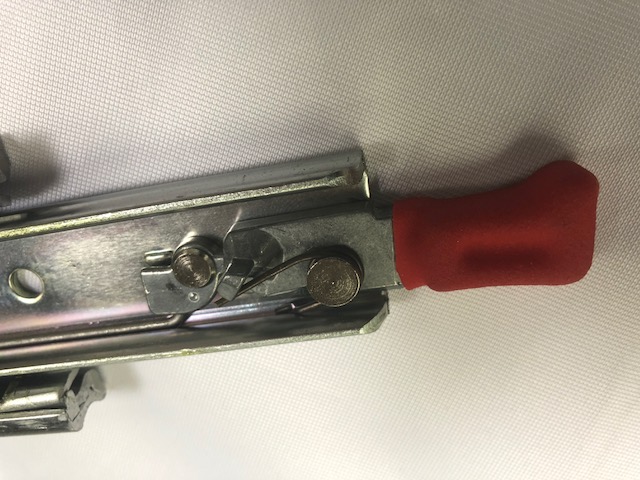

Reinforced rail 760 mm (1 pair)

Reinforced rail, 760 mm long. 250KG load capacity per pair. Technically refined, resilient and practical. The perfect rail for high loads.

TECHNICAL DATA:

High quality drawer slides
Material: cold-formed steel
Surface treatment: electrolytically galvanized and chromated (corrosion protection)
Telescopic rails are equipped with ball bearings (perfect smooth running)
Locking when pulling in and out by means of a cast lock (not a sheet steel lock)
Full extension (a lock when the rail is fully extended protects the drawer from falling out!)
Side mounting
soft and quiet guiding mechanism
reliable and stable operation of the guidance system
Rail length: 760 mm, extension: 760 mm Ideal for rear extensions in the T5 / T6 California with 80 cm extension
Rail height/thickness: 76.2 mm / 19.1 mm
Rail weight per pair: 7,100 kg

Load capacity up to 250 kg per pair
